Dragon icon MA1N

◇ Intel® Atom® Alder Lake-N Processors. ◇ Triple displays: HDMI, Type-C Alt. Mode outputs and IPEX eDP output. ◇ Rich I/O connectivity: Suitable for ultra-slim Panel PC, POS, IPC system. ◇ Designed for fanless applications.

  • Original



Main Board
CPU Intel® Core™ i3-N305, 8 cores, 6M Cache, up to 3.80 GHz, 15W Intel® Core™ i3-N300, 8 cores, 6M Cache, up to 3.80 GHz, 7W Intel® Processor N97, 4 cores, 6M Cache, up to 3.60 GHz, 12W
Memory 1 x SO-DIMM DDR4 3200 MT/s, Max. 16GB
Interface Internal Connector:eDP:1 x IPEX (eDP with USB 2.0)
Storage Device
HDD or SSD m.2 NVMe (PCIe):1x M.2 2280 M-KEY SSD Option proprietary SATA connector and cable Internal Connector: 1x M.2 2280 M-KEY (PCIe) 1x M.2 2230 E-KEY (USB2.0/PCIe)

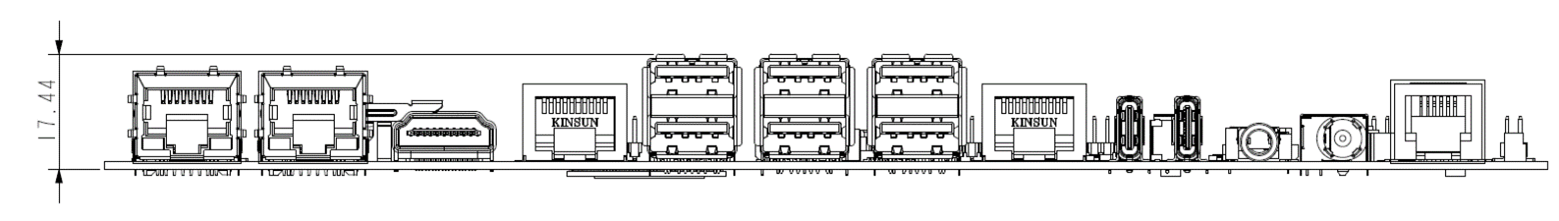

I/O Ports
COM Port Optional RJ50 to DB9 convert cable (COM Port)
USB 6 x USB3.0, 2 x USB-C 2 x Type C with Alternate mode and PD
Cash Drawer Cash Drawer supported 12V/24V select by Jumper
Audio Audio Connector:1 x 3.5 mm headphone and microphone combo jack
Expansion Slot GPIO 1 x 10 pin header (GPIO Pull high 1K to 5V level)
Display Output 1 x HDMI, 2 x Type C with Alternate mode, 1 x IPEX (up to 3 display outputs)
DC-in 5.5 x 2.5 mm DC-IN Voltage 12-24V
LAN 2 x Intel i-226V 2.5Giga LAN
COM1 COM 1,2 with Power:2 x RS232 (RJ-50) RI / 5V / 12V select by BIOS
COM 3 COM3,4: RS-232 2*5 2.0mm pin header x 2, pin9 with Ring, no +5V/+12V support
COM 5 COM5,6: RS232/422/485 (optional) 2*5 2.0mm pin header x 2, pin9 with Ring, no +5V/+12V support
Physical Dimensions

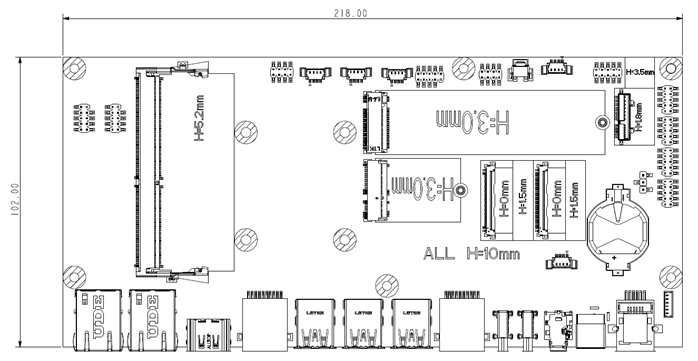

Dimension ( WxDxH ) 218 x 102 mm / 8.58 x 4.016 inch
Weight 163g / 0.359 pounds
Input / Output
Adaptor Optional 65W (19V/3.42A)
USB Internal Connector:2 x 9 pin header for USB 2.0
Power Input Internal Connector:1 x Power switch with Power LED indicator
Power Button Internal Connector: 1 x Power On/Off Push Button Switch
Communication Optional 802.11 ac/a/b/g/n Wireless module (m.2 2230)
Environmental Conditions
Storage Temperature -20~70℃ ( -4~158℉)
Operating Temperature 0~50℃ (32~122℉)
