D POS 15"

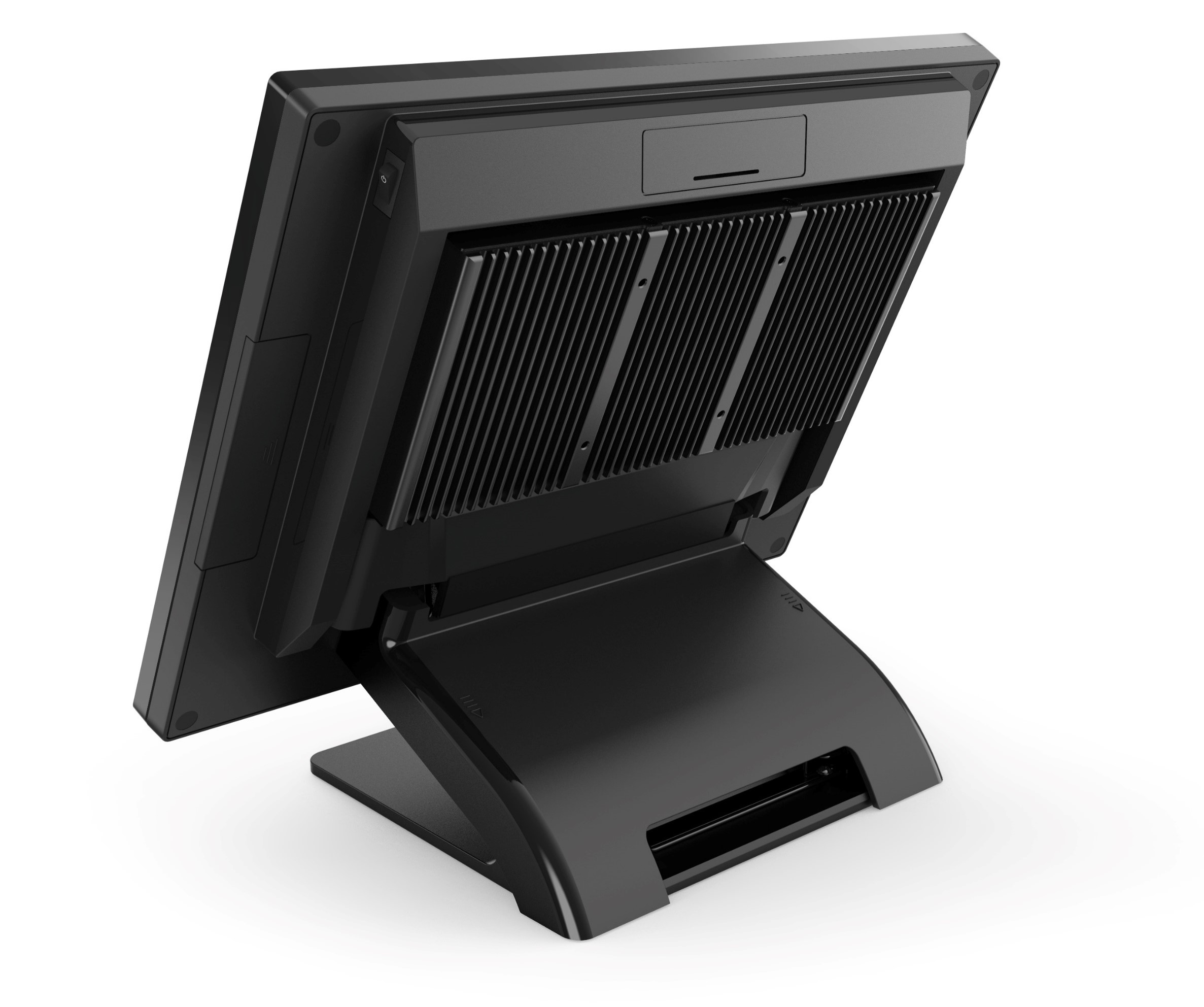

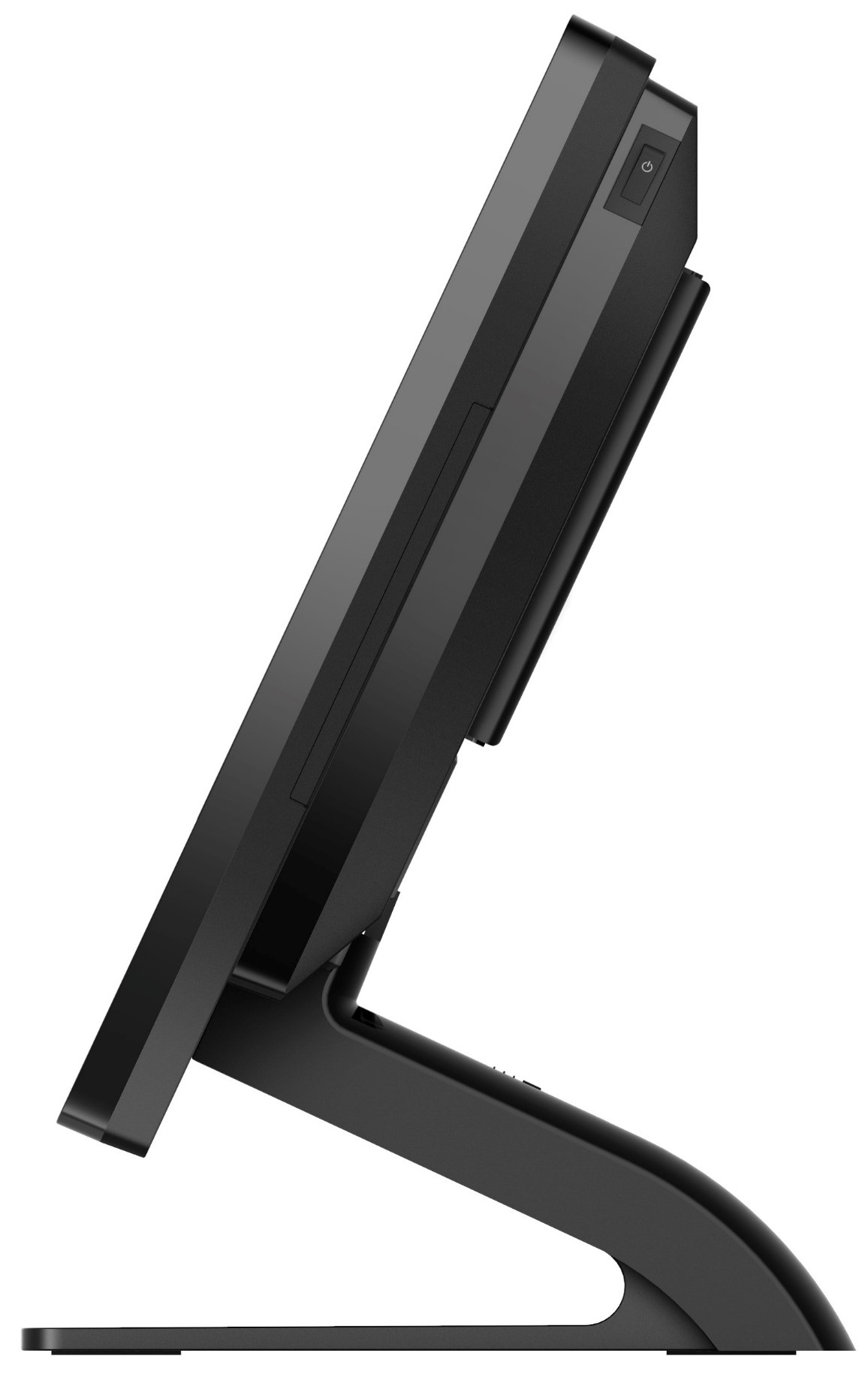

◇ Robust all-in-one POS terminal integrated with a wide variety of peripherals. ◇ Foldable structure design in a compact size to save Total Logistics Cost (TLC). ◇ Motherboard designed as proprietary form factor to support diverse intel CPU platforms. ◇ Single Cable connection. ◇ Standard VESA holes to support various mounting ways.
Bezel-Free PACP Touch
Power LED status indicate
Support 12V / 24V Powered USB Expansion
10.1" 2nd display and VFD Supported
| CPU | Alder Lake-N N 97, i3-N300 or i3-N305 |
| System Memory | 1 x DDR4, up to 16GB |
| Size | 15.1” |
| Brightness | 400nits |
| Resolution | 1024 x 768 |
| Touch Screen | PCT (Projected Capacitive Touch) Support 10 points Multi Touch |
| HDD or SSD | 1 x, m.2 2280 128G M-key Option up to 256G |
| LED Indicator | 1 x Power |
| - | Option 802.11 ac/a/b/g/n Wireless module (m.2 2230) |

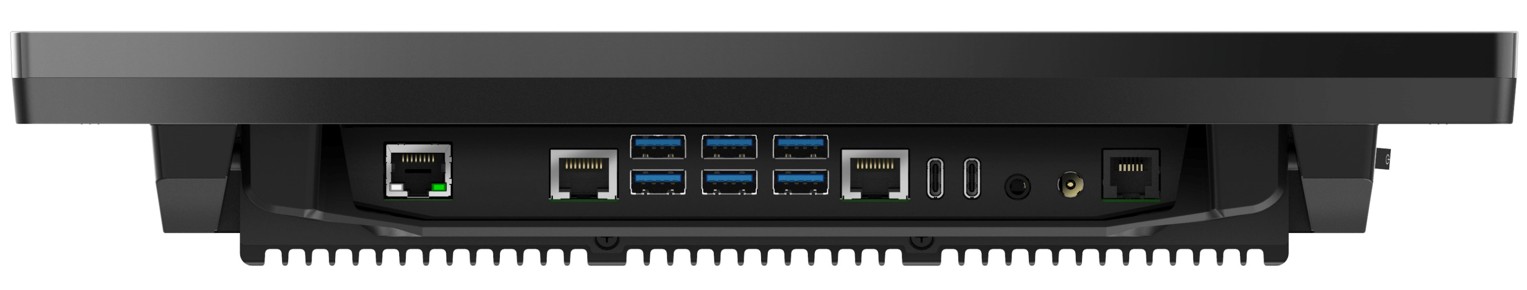

| USB | 2 x USB-C, 6 x USB3.0 |
| Cash Drawer | Supported 12V or DC-IN Voltage 19V/24V select by Jumper |
| Audio Jacks | 1 x 3.5 mm headphone and microphone combo jack |
| Display Output | 1 xType-C |
| DC-in | 5.5 x 2.5 mm DC-IN Voltage 12-24V |
| Giga LAN | 1 x Intel i-225V 2.5Giga LAN |
| COM1 | 1 x RS232 (RJ-50) RI / 5V / 12V select by BIOS |
| COM2 | 1 x RS232 (RJ-50) RI / 5V / 12V select by BIOS |
| Power Switch | 1 x Power On/Off switch |
| Dimension ( WxDxH ) | 359.5 x 192.9 x 308.4 mm / 14.15 x 7.59 x 12.14 inch |
| Adaptor | AC ADAPTOR 65W (19V/3.42A) |
| Communication | Build-in antenna hole x 2 for Wi-Fi / Bluetooth |
| Antenna Hole | VESA Hole 75mm x 75mm |
| Operating Temperature | 0~40℃ ( 32~104℉) |
| Storage environment | -20~60℃( -4~140℉) |
| Specification | Optional RJ50 to DB9 convert cable (COM Port) Optional MSR, VFD customer display, 10.1” 2nd display…Peripheral |
