Key Features
System reliability
| Main Board Name | X7E |
| CPU | Intel® Braswell SoC processor: Pentium® N3700 (14nm, 2M Cache, up to 2.40 GHz) Pentium® N3710 (14nm, 2M Cache, up to 2.56 GHz) Celeron® Processor N3160 (2M Cache, up to 2.24 GHz) |
| System Memory | SO-DIMM DDR3L 1333/1600MHz x 1, Max. 8GB |
| Graphic | Intel® HD Graphics |
| BIOS | Phoenix uEFI BIOS |
| O.S. Support | Windows Embedded POSReady 7 (64bit only) Windows 7 Professional for Embedded Systems (64bit only) Windows Embedded 8 Industry (64bit only) Linux kernel 3.0+ & associated distributions Windows 10 |
| EC | EBN-specified embedded controller |
| Cooling Solution | Fanless conductive thermal module |

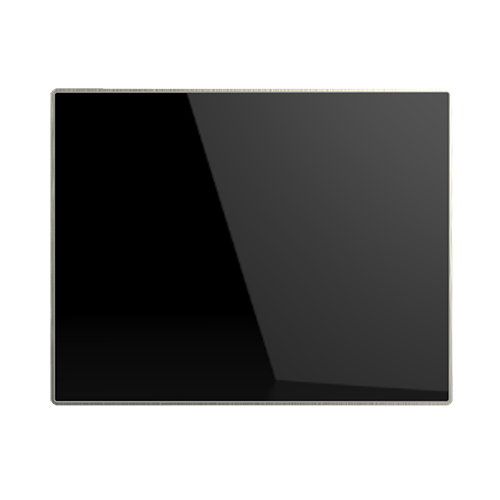

| Size | 15" 4:3 Industrial grade panel (Option 15.6” 16:9) |
| Panel backlight type | LED with 50K hours of life |
| Brightness | 250 nits |
| Resolution | 1024x 768 (1366 x 768 optional for 15.6“ model) |
| Touch Screen | P-cap multitouch with 7H hardness cover lens |
| Front panel type | True flat bezel free with IP65 compliant |
| Tilt Angle | 20°~60° |
| Interface | SATA-3 (6.0Gb/s) x 2 |
| HDD or SSD | mSATA slot x 1 (for SSD) 2.5” HDD or SSD (Option) x 1 |
| - | Power |
| Dual Band WiFi & Bluetooth | Intel AC3160 802.11 ac/a/b/g/n Wireless LAN with BT4.0 combo, half size mini PCIE type (Option) |
| Serial | Serial Port x 6, DB-9 Pin9 with RI/5V/12V selectable by BIOS. COM 1: RS-232, RJ-50 with convert to DB-9 cable COM 2: RS-232, RJ-50 with convert to DB-9 cable COM 3: RS-232/422/485 selectable by BIOS, RJ-50 with convert to DB-9 cable COM 4: RS-232, RJ-50 with convert to DB-9 cable COM 5: RS-232, Internal reserved for 2x20 VFD Customer Display COM 6: RS-232, Internal reserved |
| USB | USB 3.0 x 2 USB 2.0 x 2 |
| Cash Drawer | RJ-12 x 1, support 12V / 24V DC cash drawer |
| Audio | 2W Speaker x 1 |
| DC-in | 19~24V DC input, Radio jack x 1 |
| Giga LAN | Gigabit Ethernet by RJ-45 x 2, support Wake on LAN |
| PUH (Power USB Hub) module | USB 2.0 x 1 (24V) USB 2.0 x 2 (12V) with External 120W 19V AC-DC Adapter |
| Display Port | mini DP x 1 Option: Cable @ DP-to-VGA, DP-to-DVI, DP-to-HDMI |
| Dimension ( WxDxH ) | 36 x 5.2 x 28.5 cm (14 x 2 x 12 inch) |
| Net Weight / Gross Weight | 4.6 kg ,10.2 lb / 5.6kg, 12.4 lb |

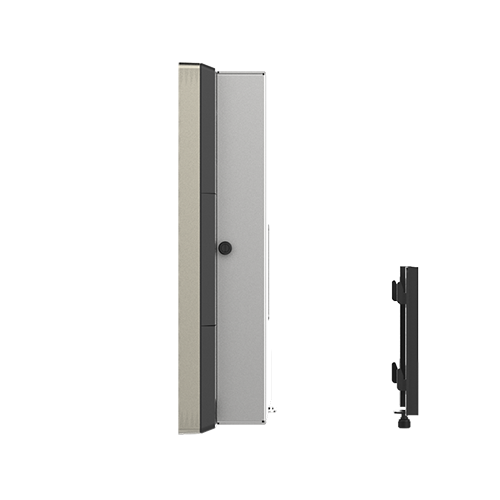

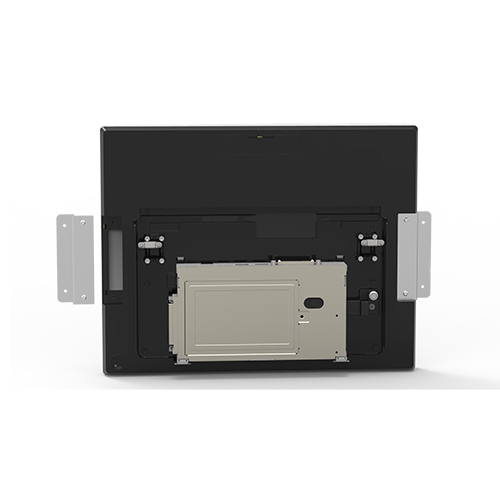

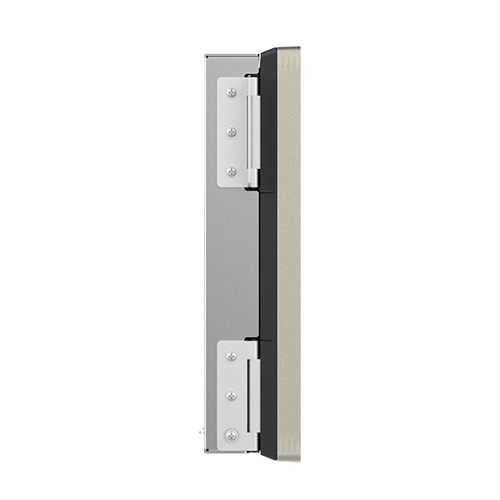

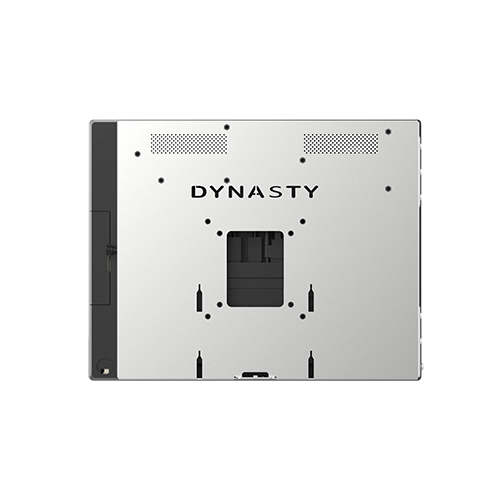

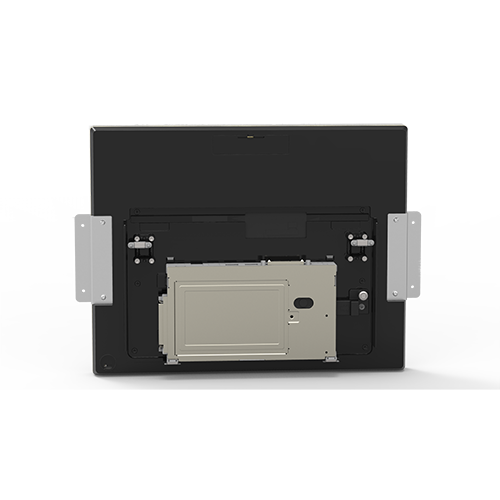

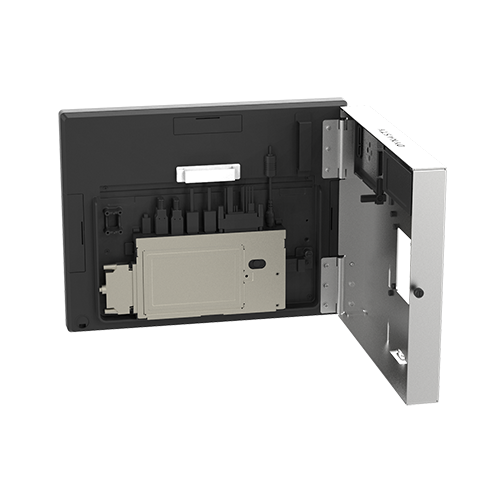

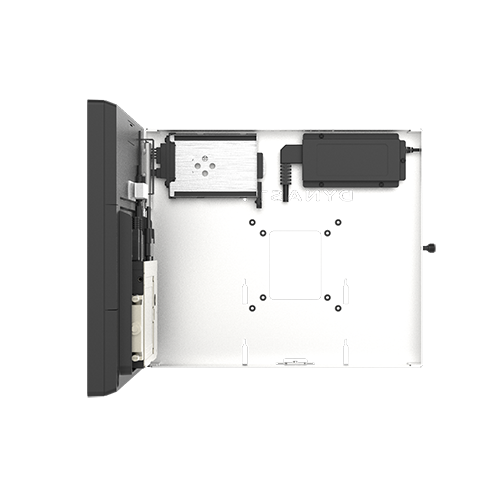

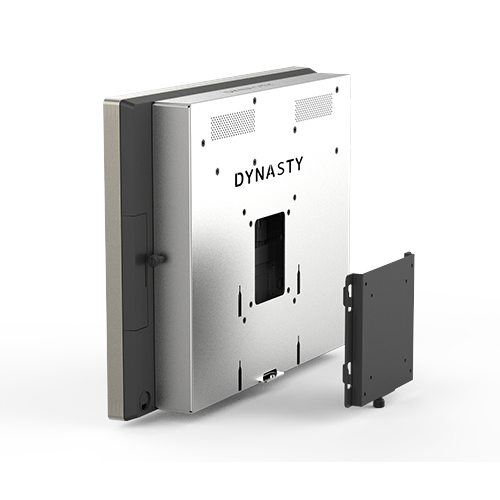

| Mounting mechanism | Support VESA Mount Panel-mounting and Rear-mounting bracket |
| Power Supply | External 65W 19V DC Option: External 120W 19V DC |
| Color | Titanium-Black, Titanium-White; Gold-Black, Gold-white, Titanium-colors With standard powdered painting finishing, optional in electroplated with hair-lined finishing |
| Material | Aluminum-Zinc Alloy |
| Certifications | CE / FCC / WEEE / RoHS / VCCI / CCC |
| Ingress Protection | IP65 @ front panel |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Operating Temperature | With extended temperature SSD/mSATA/RAM/Adapter : -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s air flow With standard system configurations: 0 ~ 50°C (-32 ~ 122°F) with 0.7m/s air flow |
| Relative Humidity | 95% @ 40°C (104°F), non-condensing |
| Part No. | Description |
| DNPPC70P-5BT-N3160 | Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Celeron® Processor N3160 2.24 GHz, White / Titanium |
| DNPPC70P-5WT-N3160 | Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Celeron® Processor N3160 2.24 GHz, White / Titanium |
| DNPPC70P-5BT-N3700 | Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3700 2.40 GHz, Black / Titanium |
| DNPPC70P-5WT-N3700 | Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3700 2.40 GHz, White / Titanium |
| DNPPC70P-5BT-N3710 | Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3710 2.56 GHz, Black / Titanium |
| DNPPC70P-5WT-N3710 | Fanless Touch PPC Terminal w/ 15" TFT LCD, Intel® Pentium N3710 2.56 GHz, White / Titanium |
