BPC07A
Advanced AI acceleration technology Performance up to 13~26 TOPS Face/object recognition and people counting solutions. Improve the performance and analysis capabilities of surveillance image recognition. Small form-factor PC box to connect three display monitors. Multi-Powered input/output ports for more robust computing operations. Embedded IoT Box PC Fan-less Box PC. DDR4 memory for better expansion and performance.
| CPU | Alder Lake-N, N97 (4C/24EU, Up to 3.6GHz, 12W), or Alder Lake-N i3-N300 (8C/32EU, Up to 3.8GHz, 15W) |
| O.S. Support | Microsoft Window 10, 11 , Linux 4.0 Kernel such as ubuntu 20.04.5 |
| Cooling Solution | AI acceleration M.2 2230 e Key PCie：N97 13 TOPS N300 26 TOPS |
| Memory | SO-DIMM：1 x DDR4, Up to 16GB |
| Interface | C/D / DIO：C/D RJ-12 Type, support 12V or Bypass DC-IN 19V /24V Voltage by Jumper TPM：TPM2.0 |
| HDD or SSD | m.2 NVMe (PCIe)：1 x m.2 2280 M-key slo |

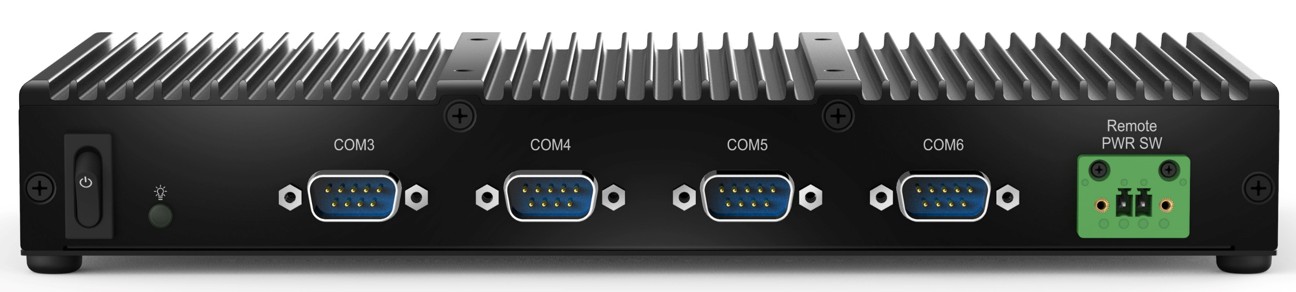

| COM Port | 2 x RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS and option 2 x RS232 (DB9), 2 x RS232/RS422/RS485 (DB9) |

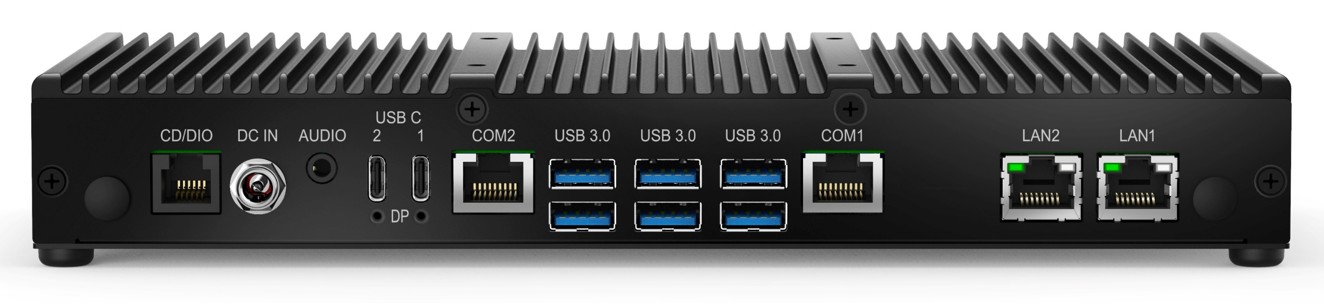

| USB | 2 x Type C with Alternate mode (DP) and PD (PD is an option that supports max. total 60W) 6 x USB3.0 |
| Audio | Audio Connector：1 x 3.5 mm headphone and microphone combo jack |
| DC-in | DC 12-24V and support screw lockable 5.5 x 2.5mm DC Plug |
| LAN | 2 x 2.5G LAN (RJ-45) Intel 226V |
| Display Port | 2x USB Type-C Alternate mode |
| Remote Power Switch | Connector for extended switch |
| Power Switch | 1 x Power On/Off rocker switch |
| Dimension ( WxDxH ) | Box PC only: 250*120*34.9mm (9.84*4.72*1.37 inch) Box PC with rubber foot: 250*120*38.9mm (9.84*4.72*1.53 inch) |
| Weight | 1.42kg / 3.13lbs |
| Antenna Hole | VESA Holes : Support 75mm x 75mm |
| Storage Temperature | -20~85℃( -4~185℉) |
| Humidity | 5~95%@40℃ |
| Operating Temperature | 0~50℃( 32~122℉) |
| Shock Protection | With M.2/SSD: 50G, half sine, 11ms, IEC60068-2-27 |
| Vibration Protection | IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1hr/axis) |
| Specification | Optional RJ50 to DB9 convert cable (COM Port) |
| Mounting Mechanism | Wall mount, rack mount |
| Power Adapter | Optional 60W,90W,130W AC adapter |
