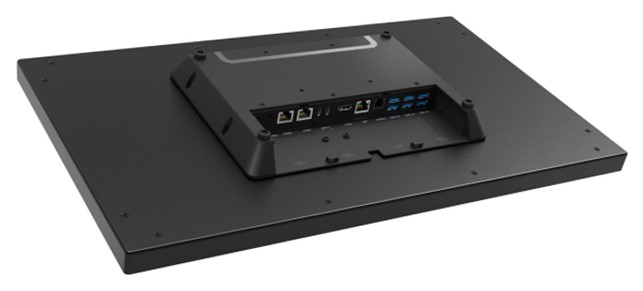

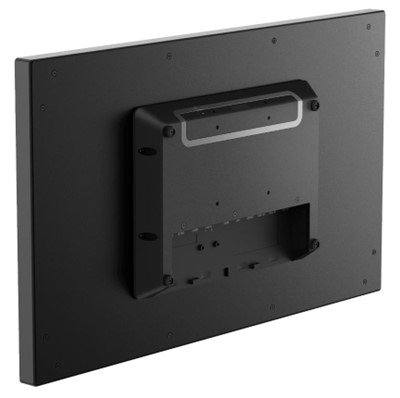

Dragon icon PPC21

EBN’s large size industrial touch panel pc offers all-in-one HMI and fanless operation.



Size 21.5" diagonal TFT active matrix
Panel backlight type LED backlight
Brightness 350 cd/m² (typ.)
Resolution 1920 x 1080 FHD
Touch Screen 10-Points Projected Capacitive Touch
Front panel type LCD
Storage Device
HDD or SSD m.2 NVMe (PCIe): 1 x m.2 2280 M-key slot
I/O Ports
USB 2 x Type C with Alternate mode (DP) and PD (PD is an option that supports max. total 60W) 6 x USB3.0
Audio 1 x 3.5 mm headphone and microphone combo jack 2 x 2W Speaker
DC-in DC 12-24V and support screw lockable 5.5 x 2.5mm DC Plug
LAN 1 x 2.5G LAN (RJ-45) Intel 226V
Display Port 1 x HDMI and 2x USB Type-C Alternate mode (up to two external display monitors)
COM1 2 x RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS and option 1 x RS232 (DB9)
COM 6 1 x Power On/Off switch
Physical Dimensions
Dimension ( WxDxH ) 512*304*47.5 mm(20.16*11.97*1.87inch)
Weight N/A
Antenna Hole VESA Holes: Support 75mm x 75mm
Environmental Conditions
Storage Temperature -20~85℃( -4~185℉)
Operating Temperature 0~40℃( 32~104℉)
Specification Optional RJ50 to DB9 convert cable (COM Port)
Power Adapter Optional 65W,90W,130W AC adapter
