Dragon icon 21.5 inch Monitor KIOSK KIT
Compare List (0)
Inquiry List (0)

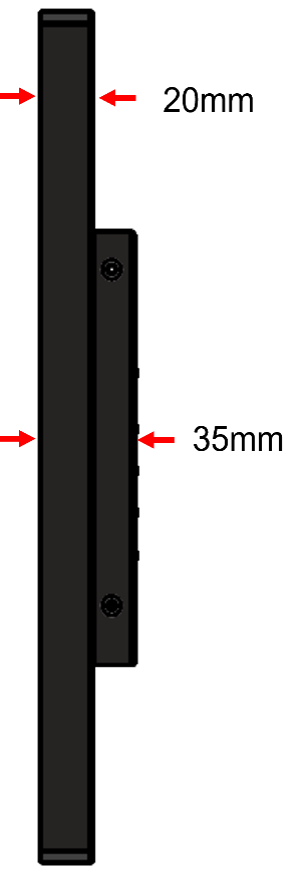

16mm Slim bezel design for broader and cleaner viewings. 10-Points True-flat Projective Capacitive Touch. USB-C Alt DP Mode. Single cable connection. Metal housing for industrial robustness. VESA 100 x 100 mounting holes for pole-, wall-, and stand- mountings. Front IP54 Design BPC09 Embedded loT Box PC

Download
Add to Compare
Inquire

Features

•Easy access switch to remote equipment.
•Small form-factor PC box to connect triple displays.
•Multi-Powered input/output ports for more robust computing operations.
•Embedded IoT Box PC Fan-less Box PC.
•Large size heat sink for better cooling.
•Robust housing.
•DDR4 memory for better expansion and performance

Specifications

Main Board
CPU Alder Lake-N, i3-N305 (8C/32EU, Up to 3.8GHz, 15W)
O.S. Support Microsoft Window 10, 11 , Linux 4.0 Kernel such as ubuntu 20.04.5
Memory SO-DIMM: 1 x DDR4, Up to 16GB
Interface C/D / DIO: C/D RJ-12 Type, support 12V or Bypass DC-IN 19V /24V Voltage by Jumper TPM:TPM2.0
Display
Size 21.5" diagonal TFT active matrix
Panel backlight type LED backlight Backlight MTBF：30,000 hrs
Brightness 350 cd/m² (typ.)
Resolution 1920 x 1080 FHD
Touch Screen 10-Points Projected Capacitive Touch Touch Controller IC：EETI
Front panel type Aspect Ratio：16:9 Contrast Ratio：3000:1 (typ.) Response Time：18ms (typ.) LCD Viewing Angle：178˚ (H) / 178˚ (V)
- Enclosure Color：Black Housing：Metal I/O Connectivity: USB-C, USB 2.0 (Downstream), DC-In (Optional 12Vdc Power Source) VESA Mounting：100*100mm
Storage Device
HDD or SSD m.2 NVMe (PCIe) : 1 x m.2 2280 M-key slot
Wireless Connectivities
- Optional 802.11 ac/a/b/g/n Wireless module (m.2 2230) Build-in antenna hole x 2 for Wi-Fi / Bluetooth

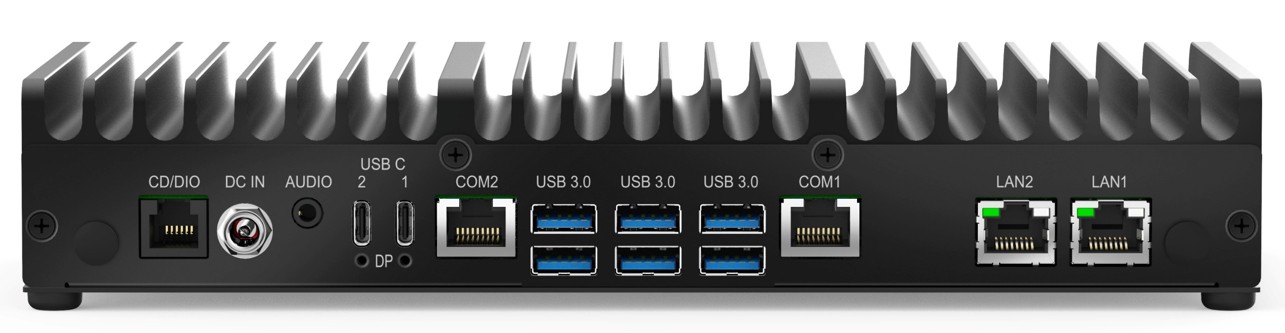

I/O Ports
USB 2 x Type C with Alternate mode (DP) and PD (PD is an option that supports max. total 60W) Single cable connect Type C monitor 6 x USB3.0
Audio Audio Connector 1 x 3.5 mm headphone and microphone combo jack
DP / HDMI 1 x HDMI and 2x USB Type-C Alternate mode (up to three display monitors)
DC-in DC 12-24V and support screw lockable 5.5 x 2.5mm DC Plug
LAN 2 x 2.5G LAN (RJ-45) Intel 226V
LED Power indicator (Green)

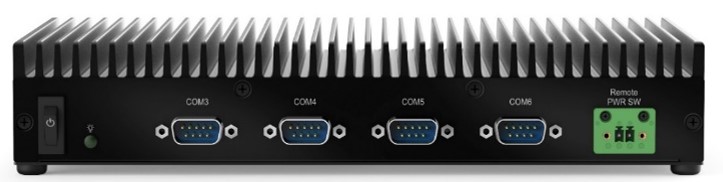

COM1 2 x RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS and option 2 x RS232 (DB9), 2 x S232/RS422/RS485 (DB9)
Remote Power Switch Connector for extended switch
Power Switch 1 x Power On/Off rocker switch
Physical Dimensions
Dimension ( WxDxH ) Box PC only: 250*140*44.7mm (9.84*5.51*1.76 inch) Box PC with rubber foot: 250*140*48.7mm (9.84*5.51*1.92 inch) 21.5" Metal Industrial Touch Monitor: 512.3 x 303.8 x 35mm(20.17*11.96*1.38 inch)
Weight Box PC N.W 1.94kg / 4.28lbs 21.5" Metal Industrial Touch Monito: Net Weight (Kg, w/o stand)：6Kg
Others
Antenna Hole 2 x Antenna holes for Wi-Fi , Bluetooth, or 4G/5G LTE VESA Holes Support 75mm x 75mm
Environmental Conditions
Storage Temperature BOX PC: -20~85℃( -4~185℉) 21.5" Metal Industrial Touch Monitor: 0˚~50˚
Humidity BOX PC: 5~95%@40℃ 21.5" Metal Industrial Touch Monitor: 20%~85% (non-condensing)
Operating Temperature BOX PC: 0~50℃( 32~122℉) 21.5" Metal Industrial Touch Monitor: -20˚~60˚
Shock Protection With M.2/SSD: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1hr/axis)
Option
Specification Optional RJ50 to DB9 convert cable (COM Port)
Mounting Mechanism Wall mount, rack mount
Power Adapter Optional 60W,90W,130W AC adapter
