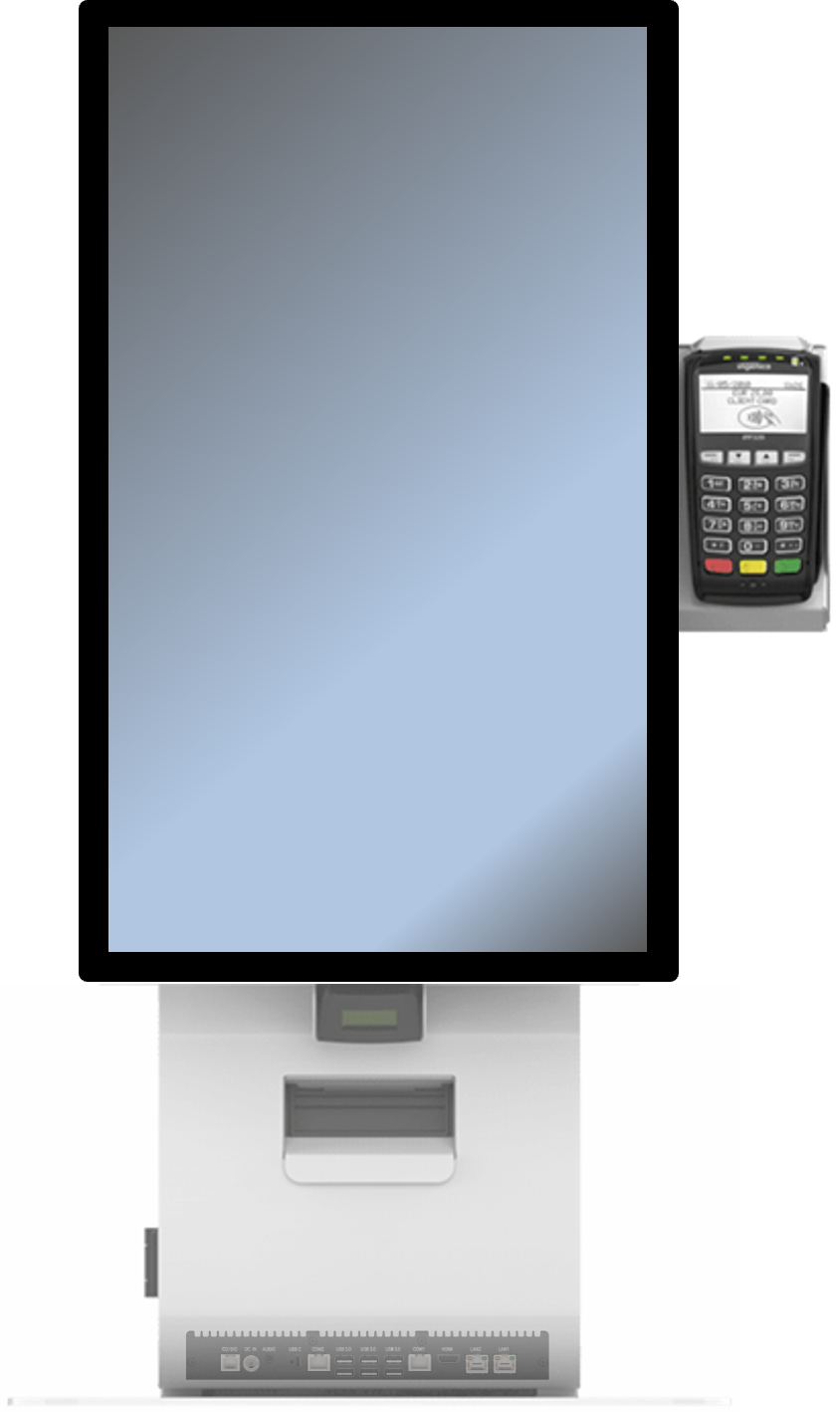

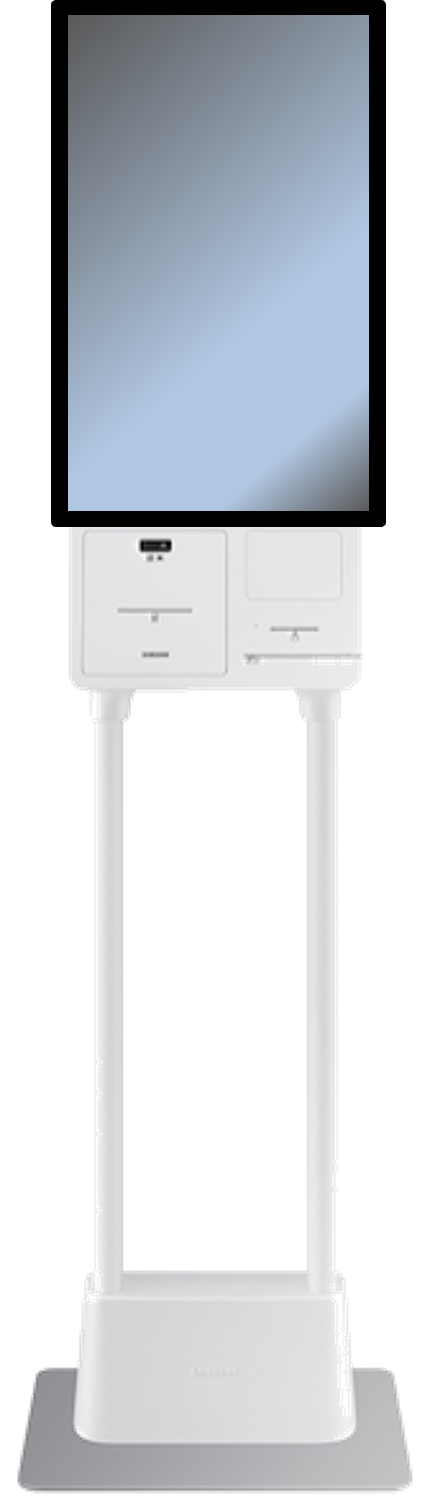

21.5 inch Monitor KIOSK KIT

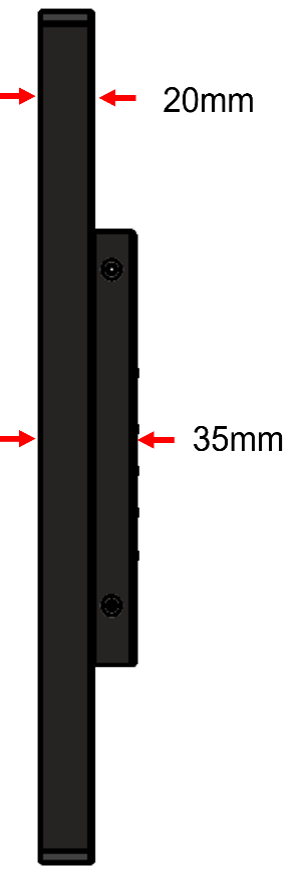

16mm Slim bezel design for broader and cleaner viewings. 10-Points True-flat Projective Capacitive Touch. USB-C Alt DP Mode. Single cable connection. Metal housing for industrial robustness. VESA 100 x 100 mounting holes for pole-, wall-, and stand- mountings. Front IP54 Design BPC07 Embedded loT Box PC

Download

Add to Compare

Inquire

Features

•Easy access switch to remote equipment.

•Small form-factor PC box to connect triple displays.

•Multi-Powered input/output ports for more robust computing operations.

•Embedded IoT Box PC Fan-less Box PC.

•Large size heat sink for better cooling.

•Robust housing.

•DDR4 memory for better expansion and performance

Specifications

Main Board

CPU	Alder Lake-N, N97 or i3-N300
O.S. Support	Microsoft Window 10, 11 , Linux 4.0 Kernel such as ubuntu 20.04.5
Memory	SO-DIMM: 1 x DDR4, Up to 16GB
Interface	C/D / DIO: C/D RJ-12 Type, support 12V or Bypass DC-IN 19V /24V Voltage by Jumper TPM:TPM2.0

Display

Size	21.5" diagonal TFT active matrix
Panel backlight type	LED backlight Backlight MTBF：30,000 hrs
Brightness	350 cd/m² (typ.)
Resolution	1920 x 1080 FHD
Touch Screen	10-Points Projected Capacitive Touch Touch Controller IC：EETI
Front panel type	Aspect Ratio：16:9 Contrast Ratio：3000:1 (typ.) Response Time：18ms (typ.) LCD Viewing Angle：178˚ (H) / 178˚ (V)

Storage Device

HDD or SSD

m.2 NVMe (PCIe) : 1 x m.2 2280 M-key slot

Wireless Connectivities

-	Optional 802.11 ac/a/b/g/n Wireless module (m.2 2230) Build-in antenna hole x 2 for Wi-Fi / Bluetooth

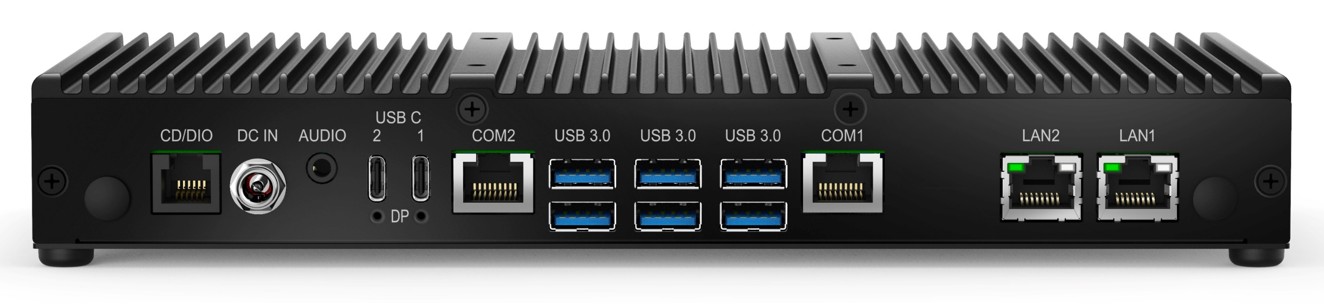

I/O Ports

USB	2 x Type C with Alternate mode (DP) and PD (PD is an option that supports max. total 60W) Single cable connect Type C monitor 6 x USB3.0
Audio	Audio Connector 1 x 3.5 mm headphone and microphone combo jack
DP / HDMI	2x USB Type-C Alternate mode
DC-in	DC 12-24V and support screw lockable 5.5 x 2.5mm DC Plug
LAN	2 x 2.5G LAN (RJ-45) Intel 226V
LED	Power indicator (Green)

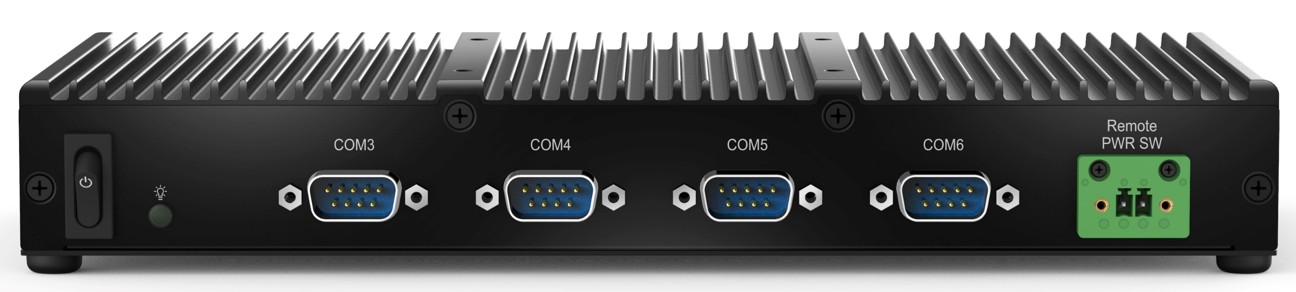

COM1	2 x RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS and option 2 x RS232 (DB9), 2 x S232/RS422/RS485 (DB9)
Remote Power Switch	Connector for extended switch
Power Switch	1 x Power On/Off rocker switch

Physical Dimensions

Dimension ( WxDxH )	Box PC only:25012034.9mm (9.844.721.37 inch) Box PC with rubber foot: 25012038.9mm (9.844.721.53 inch) 21.5" Metal Industrial Touch Monitor: 512.3 x 303.8 x 35mm(20.1711.961.38 inch)
Weight	Box PC N.W 1.42kg / 3.13lbs 21.5" Metal Industrial Touch Monito: Net Weight (Kg, w/o stand)：6Kg

Others

Antenna Hole

2 x Antenna holes for Wi-Fi , Bluetooth, or 4G/5G LTE VESA Holes Support 75mm x 75mm

Environmental Conditions

Storage Temperature	BOX PC: -20~85℃( -4~185℉) 21.5" Metal Industrial Touch Monitor: -20˚~60˚(-4~140℉)
Humidity	BOX PC: 5~95%@40℃ 21.5" Metal Industrial Touch Monitor: 20%~85% (non-condensing)
Operating Temperature	BOX PC: 0~50℃( 32~122℉) 21.5" Metal Industrial Touch Monitor: 0~50℃( 32~122℉)
Shock Protection	With M.2/SSD: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection	IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1hr/axis)

Option

Specification	Optional RJ50 to DB9 convert cable (COM Port)
Mounting Mechanism	Wall mount, rack mount
Power Adapter	Optional 60W,90W,130W AC adapter
