Dragon icon BPC09
Compare List (0)
Inquiry List (0)

Easy access switch to remote equipment. Small form-factor PC box to connect three display monitors. Multi-Powered input/output ports for more robust computing operations. Embedded IoT Box PC Fan-less Box PC. Large size heat sink for better cooling. Robust housing. DDR4 memory for better expansion and performance.

  • Original
  • Original
  • Original
  • Original
Download
Add to Compare
Inquire

Features

Specifications

Main Board
CPU FCBGA1264 Alder Lake-N, i3-N305 (8C/32EU, Up to 3.8GHz, 15W)
O.S. Support Microsoft Window 10, 11 , Linux 4.0 Kernel such as ubuntu 20.04.5
Cooling Solution Fanless
Memory SO-DIMM：1 x DDR4, Up to 16GB
Interface C/D / DIO:C/D RJ-12 Type, support 12V or Bypass DC-IN 19V /24V Voltage by Jumper TPM：TPM2.0
Storage Device
HDD or SSD m.2 NVMe (PCIe): 1 x m.2 2280 M-key slot
Wireless Connectivities
- Wi-Fi / Bluetooth Optional 802.11 ac/a/b/g/n Wireless module (m.2 2230) Build-in antenna hole x 2 for Wi-Fi / Bluetooth

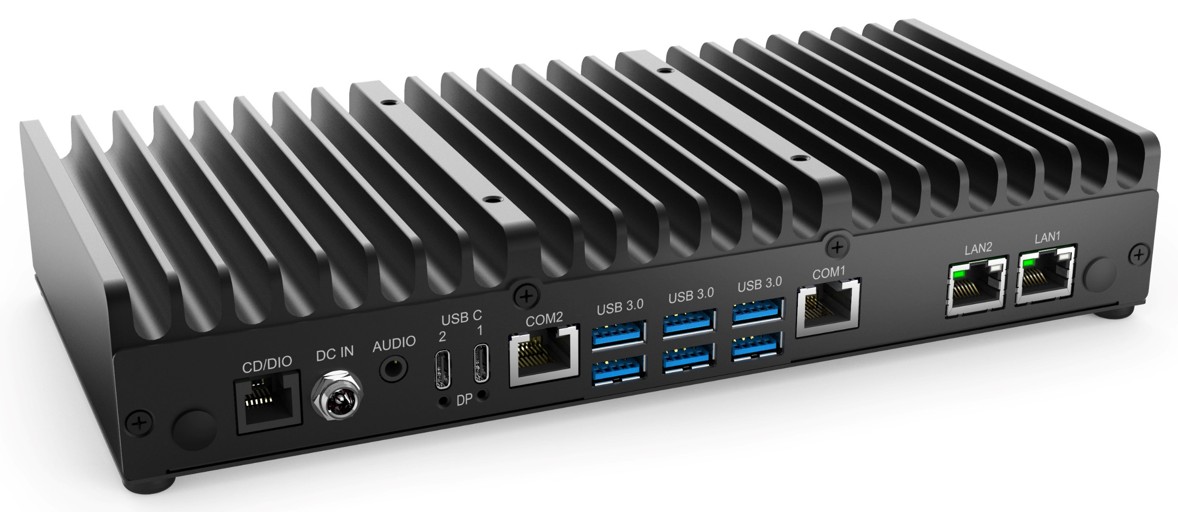

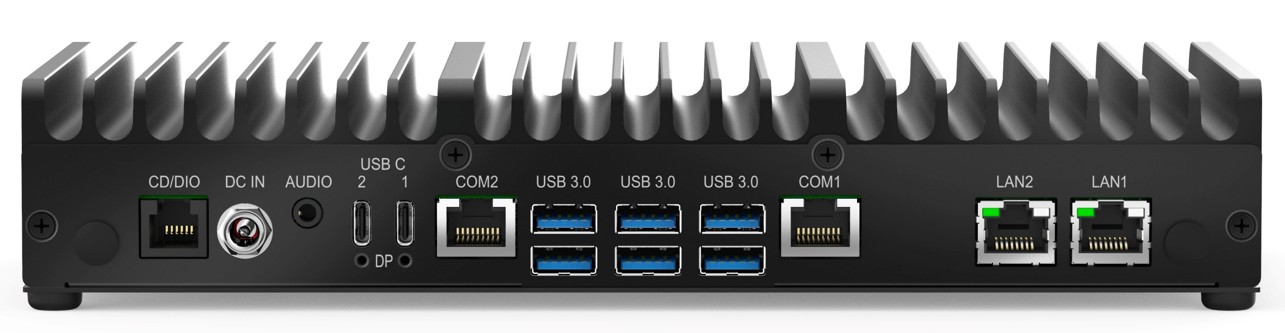

I/O Ports
USB 2 x Type C with Alternate mode (DP) and PD (PD is an option that supports max. total 60W) 6 x USB3.0
Audio Audio Connector: 1 x 3.5 mm headphone and microphone combo jack
DC-in DC 12-24V and support screw lockable 5.5 x 2.5mm DC Plug
LAN 2 x 2.5G LAN (RJ-45) Intel 226V
Display Port 1 x HDMI and 2x USB Type-C Alternate mode (up to three display monitors)
LED Power indicator (Green)

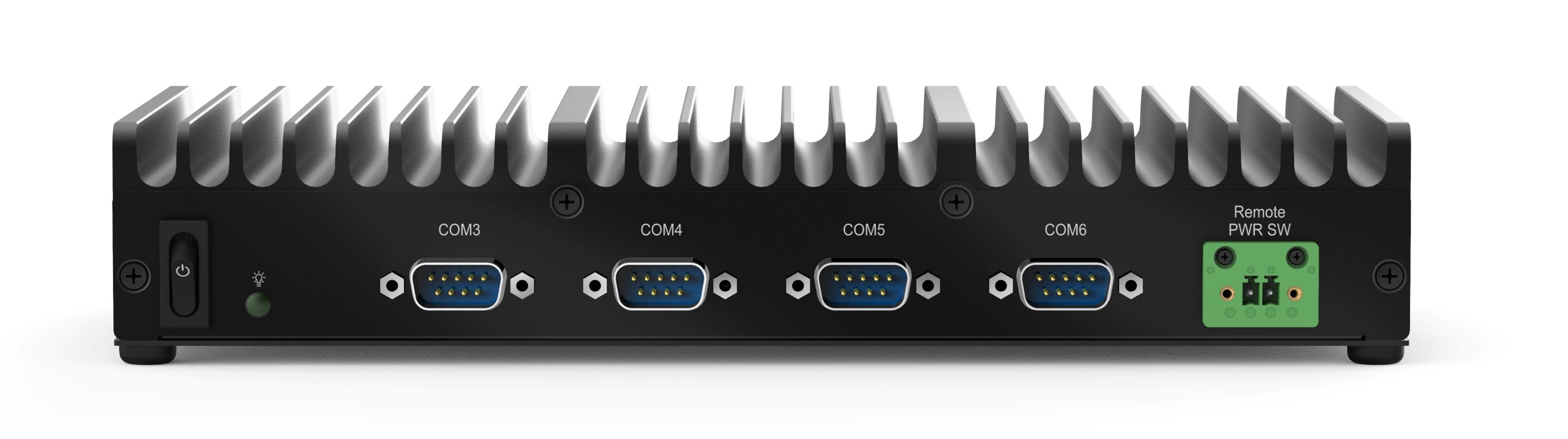

COM1 2 x RS232 (RJ-50) Pin 9: Ring/5V/12V select by BIOS and option 2 x RS232 (DB9), 2 x RS232/RS422/RS485 (DB9)
Remote Power Switch Connector for extended switch
Power Switch 1 x Power On/Off rocker switch
Physical Dimensions

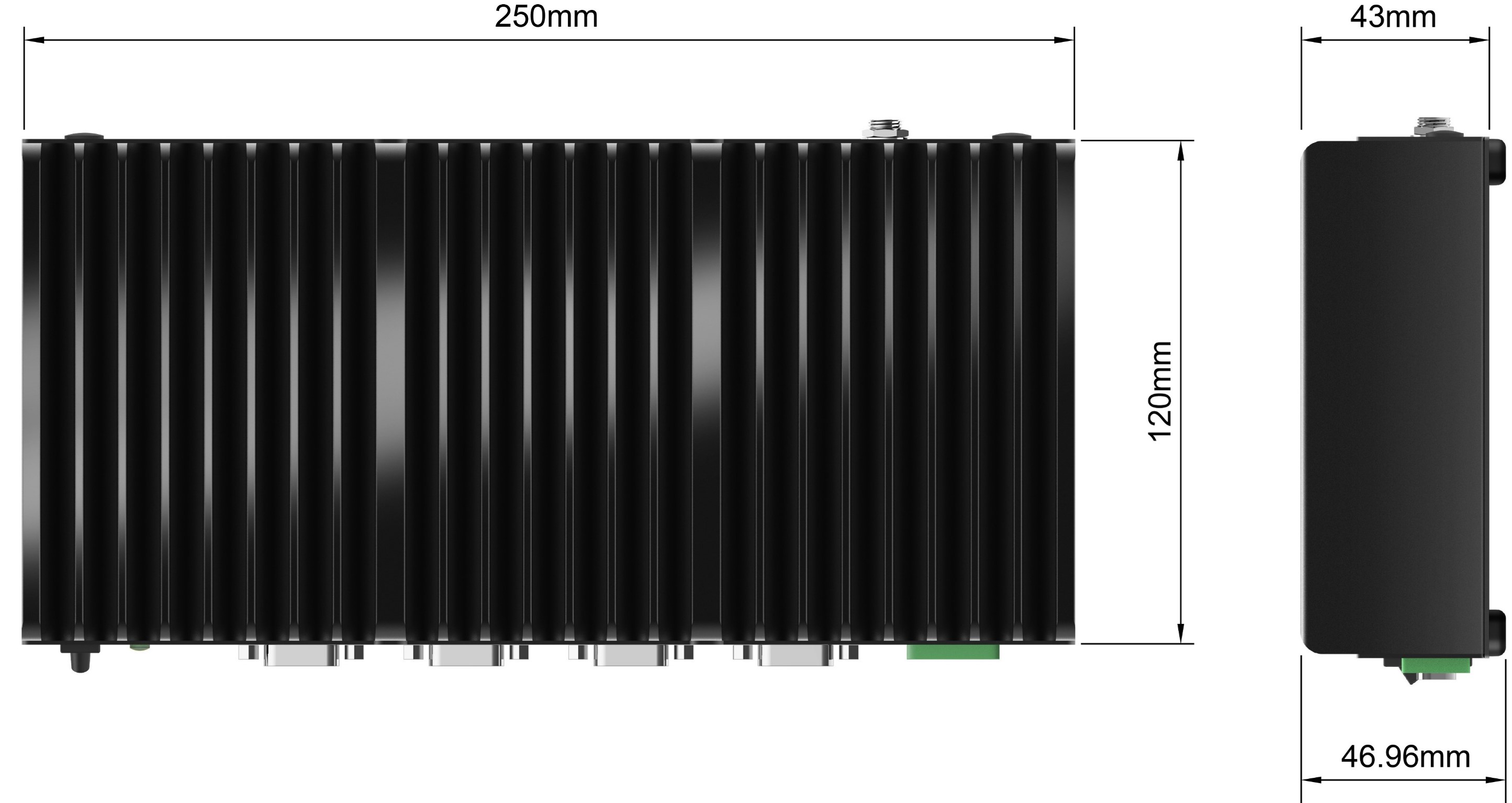

Dimension ( WxDxH ) Box PC only: 250*140*44.7mm (9.84*5.51*1.76 inch) Box PC with rubber foot: 250*140*48.7mm (9.84*5.51*1.92 inch)
Weight 1.94kg / 4.28lb
Others
Antenna Hole 2 x Antenna holes for Wi-Fi , Bluetooth, or 4G/5G LTE VESA Holes : Support 75mm x 75mm
Environmental Conditions
Storage Temperature -20~85℃( -4~185℉)
Operating Temperature 0~50℃( 32~122℉)
Relative Humidity 5~95%@40℃
Shock Protection With M.2/SSD: 50G, half sine, 11ms, IEC60068-2-27
Vibration Protection IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1hr/axis)
Option
Specification Optional RJ50 to DB9 convert cable (COM Port)
Mounting Mechanism Wall mount, rack mount
Power Adapter Optional 60W,90W,130W AC adapter
