BPC06

Fanless Embedded IoT Box PC, robust housing with Intel® Sky Lake and Kaby Lake CPU, processor for the space-limited space applications. Accessories： Cable mDP x 1 Option RJ50 to RS232 COM converter cable Cable Fix bracket*1 Power Cord：EU, US, AU, JP Adapter：19V / 65W

Download

Add to Compare

Inquire

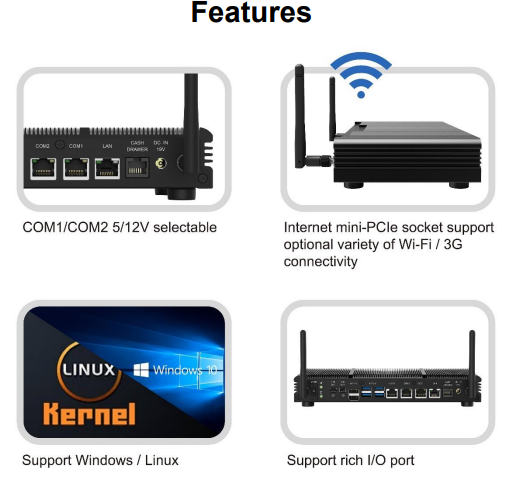

Features

Specifications

Main Board

CPU	Intel® Celeron® Processor 3965U, i3-6100U, i5-7300U
O.S. Support	Microsoft ：Windows 10 (IoT) for Industrial Devices Others ：Linux Kernel 4.4+
Memory	DDR4 One SODIMM: 4GB (up to 32 GB)

Storage Device

HDD or SSD

M.2 x2 (Key B/M) up to 512GB

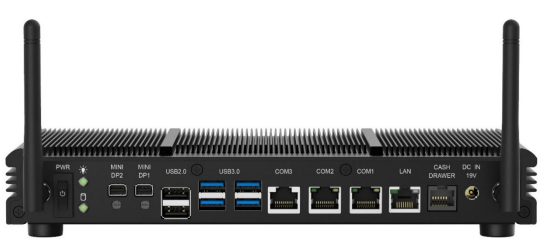

I/O Ports

USB	USB 3.0 x 4 USB 2.0 x 2
Cash Drawer	RJ12 x 1, support 12V/24V DC cash drawer
DC-in	19VDC input
LAN	Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
Display Port	Video：Mini Display Port x 2
LED	(3Φ, green) 1x HDD Read/Write Indicator 1x Power Status Indicator
Button	1x Power Off/On Button
COM1	RJ50 to DB9 RS232 x1 (RI / 5V (green led) / 12V by BIOS selection
COM2	RJ50 to DB9 RS232 x1 (RI / 5V (green led) / 12V by BIOS selection
COM 3	RJ50 to DB9 RS232

Physical Dimensions

Dimension ( WxDxH )	250125.7543.4mm
Weight	1.5kg

Others

Expansion Slot	M.2 2230 E-key slot x1 (for Wi-Fi module, option) M.2 2242 SSD Slot x 2
Power Supply	External adapter, 19V DC input, 65Watt
Color	Black
Material	Aluminum / SECC
Certifications	CE/FCC class A

Environmental Conditions

Storage Temperature	-20°C to 80°C, relative humidity 95% @ 40°C (non-condensing)
Operating Temperature	0°C to 40°C (with standard HDD/SSD/SATA-Slim/DRAM)
