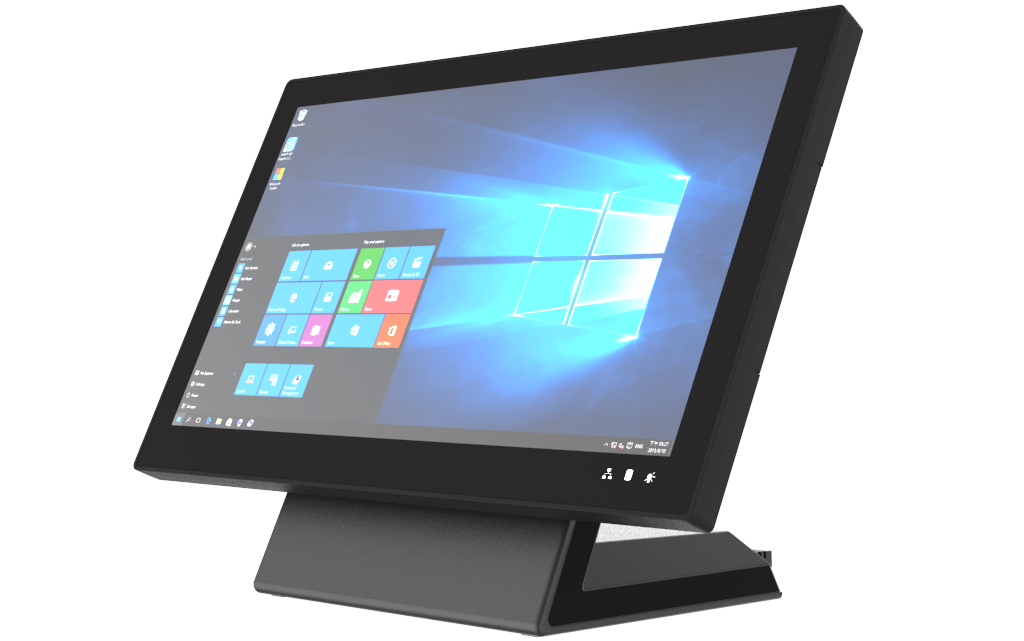

Specifications

Main Board

Main Board Name	X8H
CPU	Intel® Skylake-U Processor: i3-6100U (2 cores, up to 2.3 GHz, TDP 15 Watts)
System Memory	SO-DIMM DDR4 x 1 2133MHz, Max. 16GB
Graphic	Intel® HD Graphics 520
BIOS	AMI uEFI BIOS
O.S. Support	Windows 8, Windows Embedded 8 Standard/Industry Retail Windows 10
Power Supply	External adapter, 19V DC Input, 65 Watts

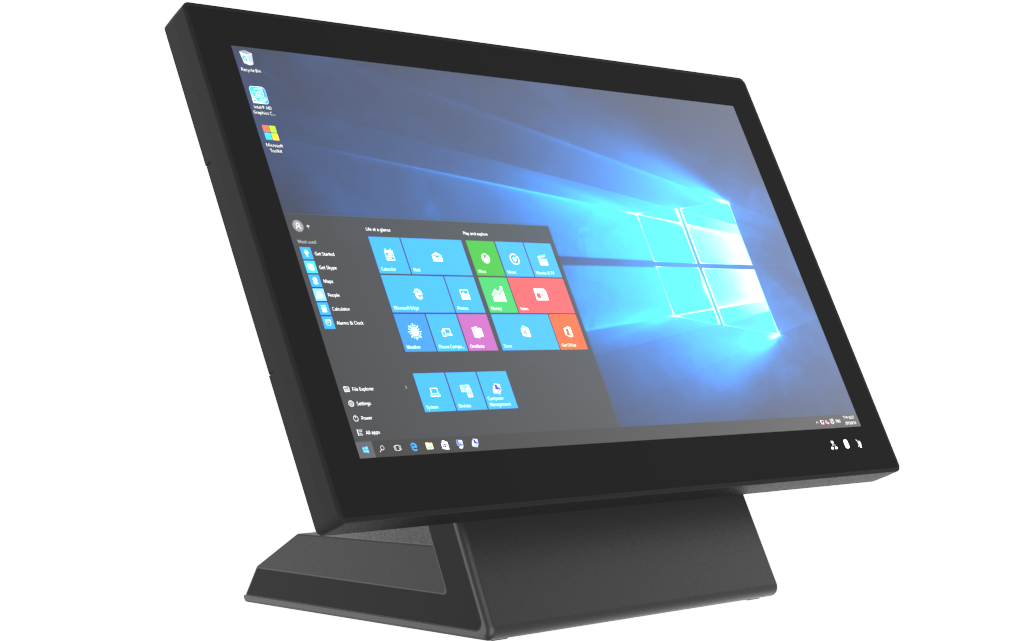

Display

Size	15.6" TFT LCD Panel
Panel backlight type	LED Backlight
Brightness	220 nits
Resolution	1366 x 768
Touch Screen	P-cap
Front panel type	True flat bezel free with IP65 compliant.
Tilt Angle	25°~90°

Storage Device

Interface	SATA x 2 (3.0Gb/S)
HDD or SSD	2.5" SATA HDD / SSD x 1 M.2 2242 SSD Slot x 1

Indicators

LED Indicator

Pin Header

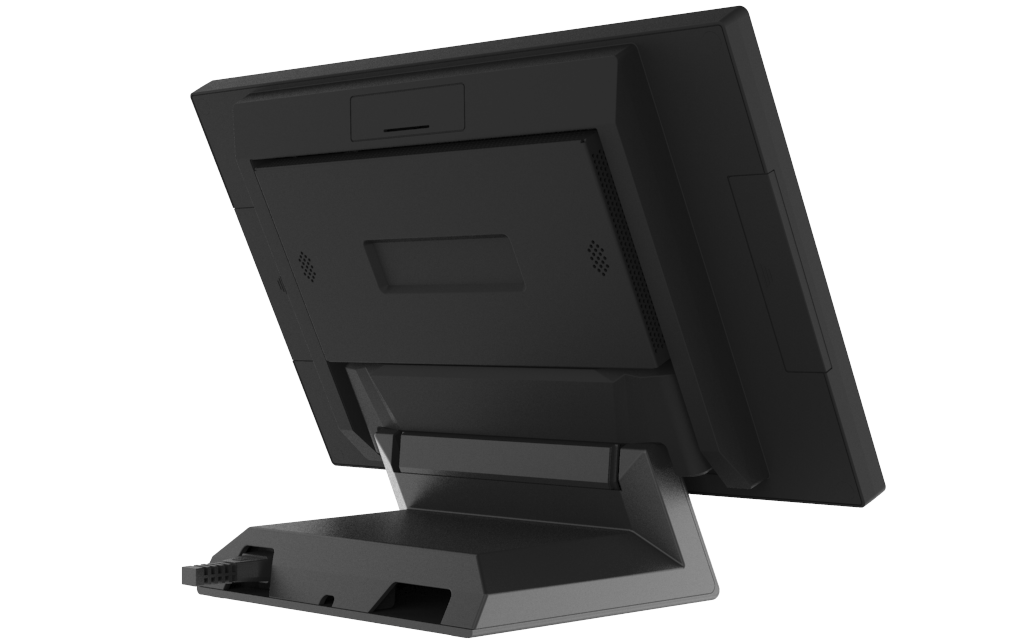

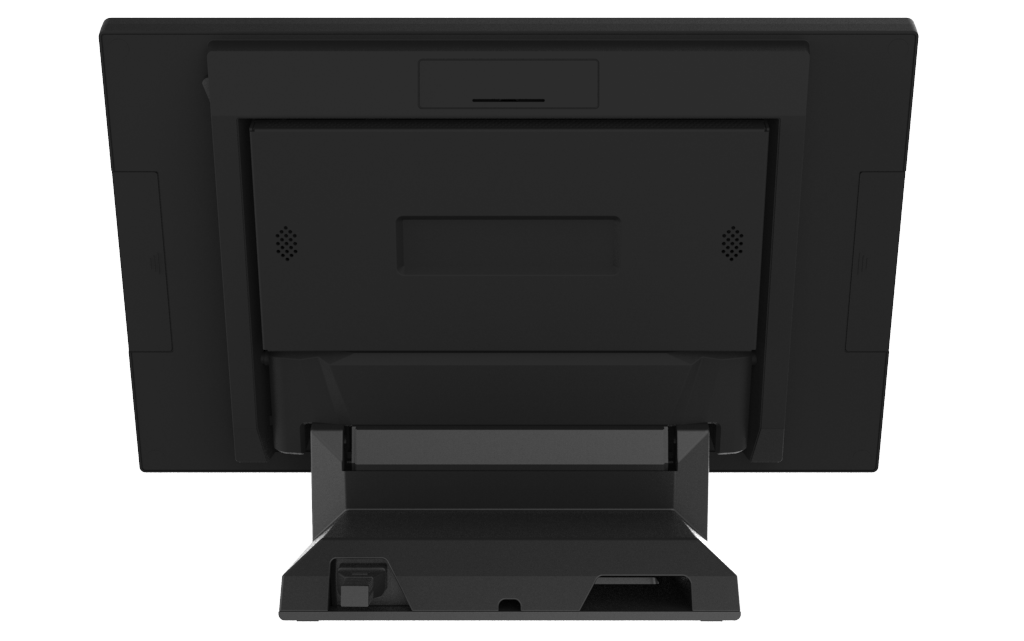

I/O Ports

COM Port	COM 1: RJ50 to DB9 RS232 x 1 (R1 / 5V / 12V by BIOS selection) COM 2: RJ50 to DB9 RS232 x 1 (R1 / 5V / 12V by BIOS selection) COM 3: RJ50 to DB9 RS232
USB	USB 3.0 x 4 USB 2.0 x 2
Cash Drawer	RJ12 x 1, support 12V / 24V DC Cash Drawer
Audio	2-Watt Speaker x 2 (Stereo)
DC-in	19V DC Input, 2-pin jack x 1
Power Button	Power Button x 1
Giga LAN	Gigabit Ethernet by RJ45 x 1, support Wake on LAN.
Display Port	Mini Display Port x 1
COM 4	RS232 pin-header x1 (no power, optional)
COM 5	RS232 pin-header x1 (no power, optional)
COM 6	RS232 pin-header x1 (5V for VFD)

Power & Battery

Cash drawer

RJ12 x 1, support 12V / 24V DC Cash Drawer

Modular Option

Battery

CR2032

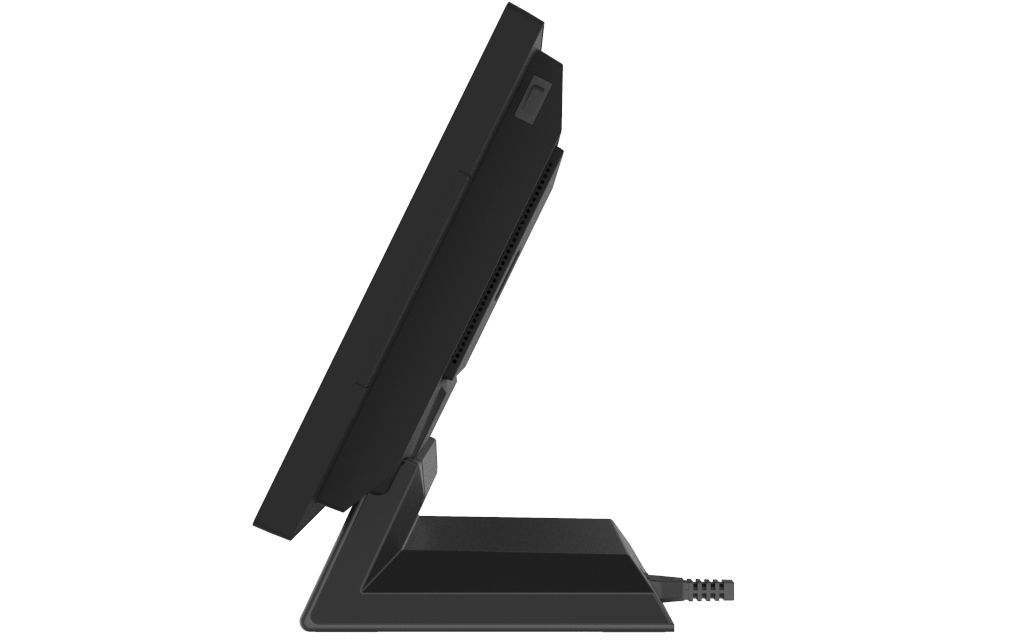

Physical Dimensions

Dimension ( WxDxH )	40.2 x 18.9 x 24.7 cm (15.8 x 7.4 x 9.7 inch)
Net Weight / Gross Weight	5.3 kg.

Input / Output

Power Input	19V DC input, 2-pin jack x 1
Power Button	Power Button x 1

Others

Mounting mechanism	Optional VESA-mounting bracket
Communication	Wireless LAN module, M.2 2230 E-key (optional)
Expansion Slot	M.2 2230 E-key slot x 1 (for WiFi module, included USB 2.0 signal) M.2 2242 SSD Slot x 2
Power Supply	External adapter, 19V DC Input, 65 Watts
Color	Black / White
Material	Plastic / Aluminium
Certifications	CE / FCC / VCCI / CB / WEEE / ROHS

Environmental Conditions

Storage Temperature	-20° ~ 60° C
Operating Temperature	0 ~ 40° C
Relative Humidity	20% ~ 85% RH (non-condensing)
