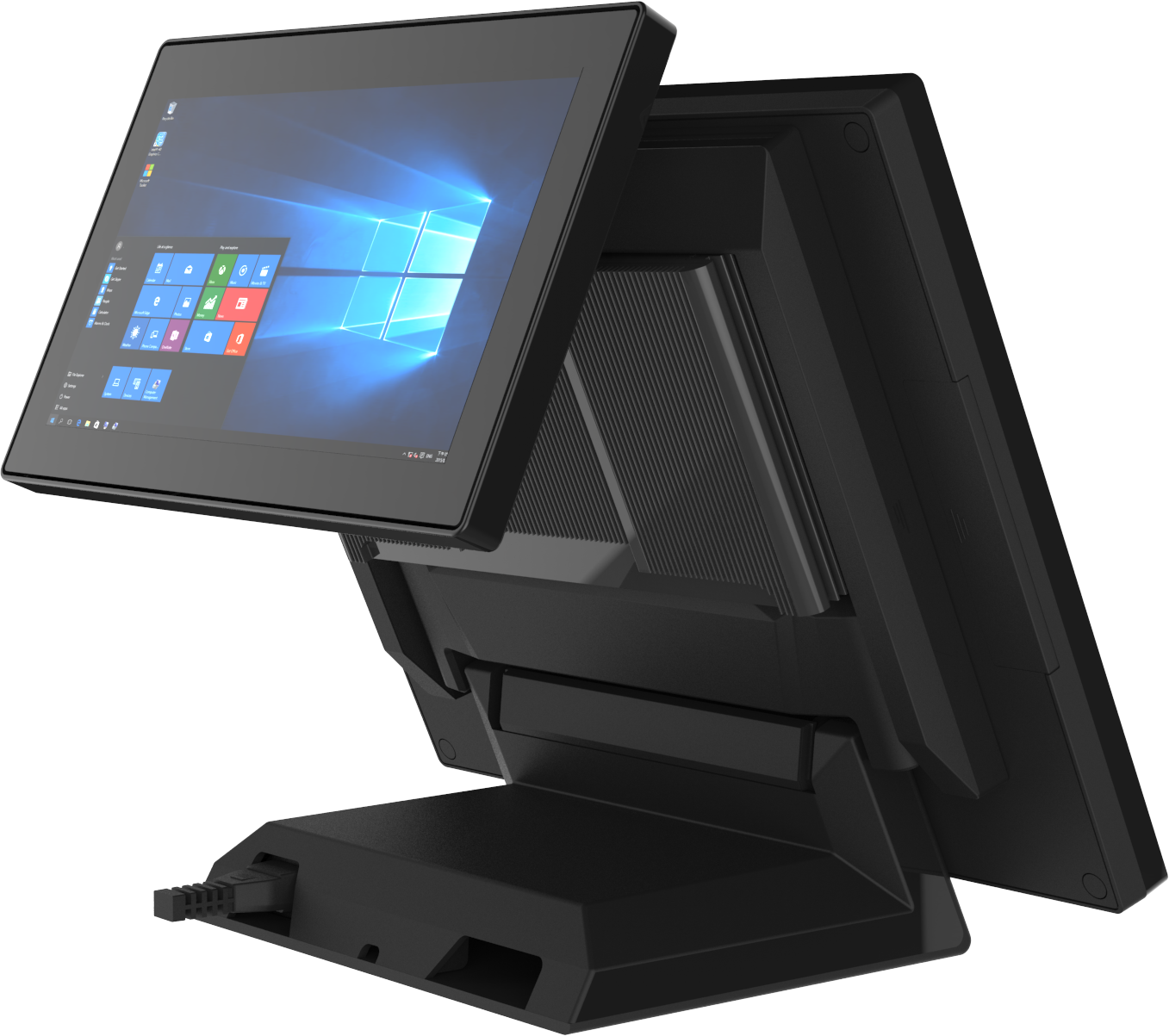

Dragon icon DG-150S

DRAGON DG-150S is a highly reliable POS Terminal with the performance of Intel® Skylake-U processors. Perfect for empowering your business with high performance and sophistication.

  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original
  • Original

Features

Specifications

Main Board
Main Board Name X8H
CPU Intel® Skylake-U Processor: i3-6100U (2 cores, up to 2.3 GHz, TDP 15 Watt)
System Memory SO-DIMM DDR4 x 1 2133MHz, Max. 32GB
Graphic Intel® HD Graphics 520
BIOS AMI uEFI BIOS
O.S. Support Windows 8, Windows Embedded 8 Standard/Industry Retail WIN 10
Power Supply External adapter, 19V DC input, 65Watt
Display
Size 15" TFT LCD Panel (LED Backlight)
Panel backlight type LED
Brightness 400nits
Resolution 1024 x 768
Touch Screen P-cap
Storage Device
Interface SATA x 3 (6.0Gb/S) Support RAID 0/1
HDD or SSD 2.5" SATA HDD / SSD x 1 M.2 2242 SSD Slot x 2
I/O Ports
COM Port COM 1 : RJ50 to DB9 RS232 x 1 (RI / 5V / 12V by BIOS selection) COM 2 : RJ50 to DB9 RS232 x 1 (RI / 5V / 12V by BIOS selection) COM 3 : RJ50 to DB9 RS232
USB USB 3.0 x 4 USB 2.0 x 2 Support Parallel / PS2 port via optional conversion cable
Cash Drawer RJ12 x 1, support 12V / 24V DC cash drawer
Audio 2 Watt Speaker x 2 (Stereo)
DC-in 19VDC input, 2pins jack x 1
Power Button Power button x 1
LAN Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
Display Port Mini DisplayPort x 2
COM 4 RS232 pin-header x 1 (no power, Option)
COM 5 RS232 pin-header x 1 (no power, Option)

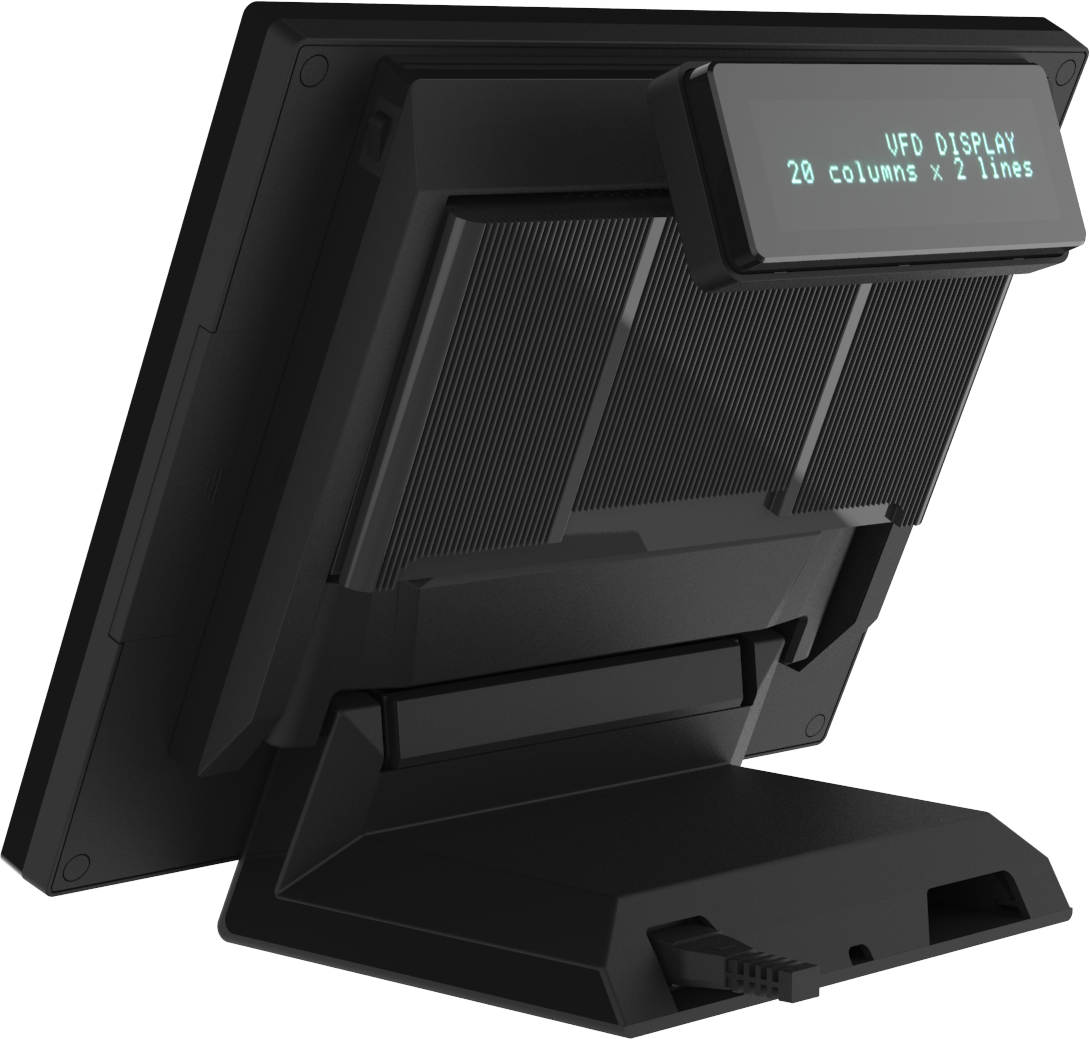

COM 6 RS232 pin-header x 1 (5V for VFD)
Modular Option
Battery CR2032
Physical Dimensions
Dimension ( WxDxH ) 36 x 18.9 x 29 cm (14.2 x 7.5 x 11.4 inch)
Weight 5.3 kg
Others
Communication Wireless LAN module, M.2 2230 E-key (Optional)
Expansion Slot M.2 2230 E-key slot x 1 (for Wi-Fi module, included USB2.0 signal) M.2 2242 SSD Slot x 2
Color Black / White
Material Plastic / Aluminium / SECC
