X-POS 755S

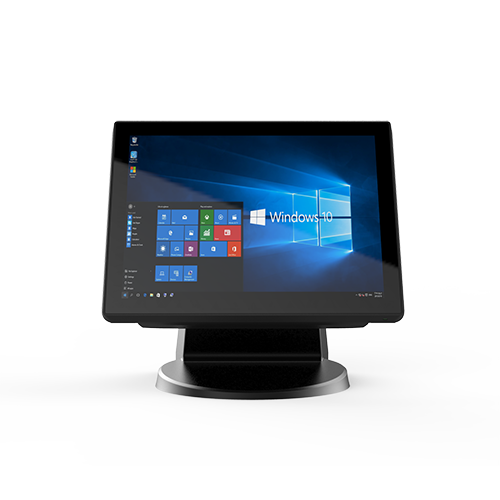

The Sleek High Performance Bezel-Free POS Terminal The X-POS 755S is a highly reliable POS Terminal with the performance of Intel® Core™ i7/i5/i3 (Skylake-S) processors. Perfect for empowering your business with high performance and sophistication.

Download

Add to Compare

Inquire

Features

Key Features

Features Intel® Core™ i3/i5/i7 CPU and up to 16GB of RAM
HDD Easy to Swap
Stylish front panel that is both water resistant and dust proof

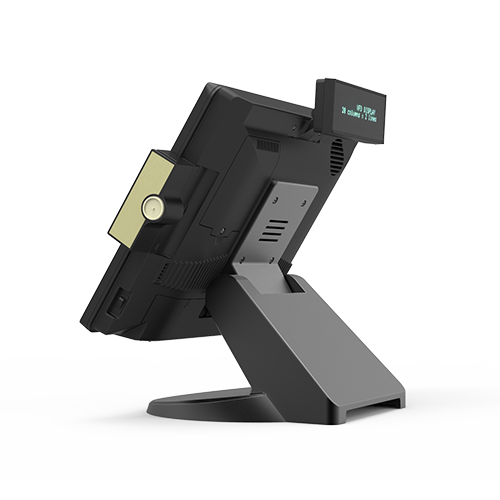

Slim Type Peripherals, MSR, VFD, iButton

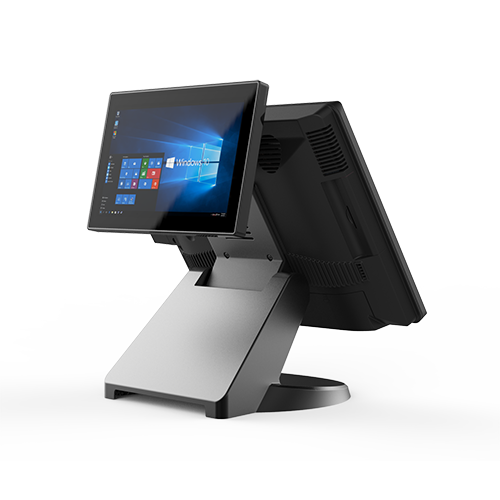

Second Display Supported
Slim Bezel and Small Foot Print

Specifications

Main Board

Main Board Name	X8F
CPU	Support 6th generation Intel® Core™ i7/i5/i3 (Skylake-S) LGA socket type processors -Intel® Core™ i7-6700TE Processor (Quad core, 8M Cache, 3.4 GHz) -Intel® Core™ i5-6500TE Processor (Quad core, 6M Cache, 3.3 GHz) -Intel® Core™ i3-6100TE Processor (Dual cores, 4M Cache, up to 2.70 GHz) -Intel® Celeron G3900TE Processor (Dual cores, 2M Cache, up to 2.3GHz) J4125 or J6412
System Memory	DDR4 SO-DIMM 1866/2133MHz x 1, Max. up to 16GB with un-buffered and non-ECC type
Graphic	Intel® HD Graphics 530 / Intel® HD Graphics 510
BIOS	AMI BIOS
O.S. Support	- Windows Embedded POSReady 7 (64bit only) - Windows 7 Professional for Embedded System (64bit only) - Windows Embedded 8 Industry (64bit only) - Windows 10 - Linux kernel 3.0+ & associated distributions
Cooling Solution	Fan

Display

Size	15” 4:3 Industrial grade panel
Panel backlight type	LED with 50K hours of life
Brightness	250 nits
Resolution	1024 x 768
Touch Screen	P-cap multi-touch with 7H hardness over lens
Front panel type	True flat bezel free with IP65 compliant

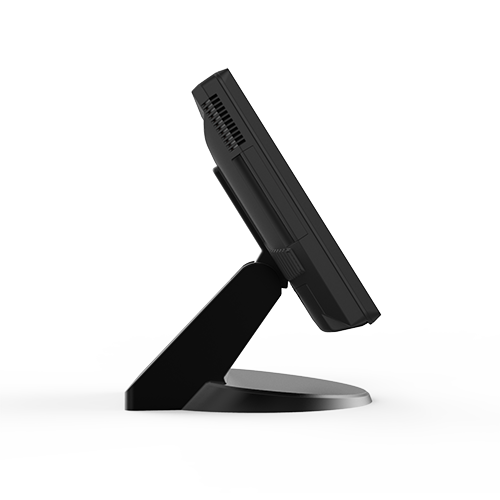

Tilt Angle	0~90°

Storage Device

Interface	SATA3 (6.0Gb/S) x 2
HDD or SSD	mSATA slot x 1 (for SSD) 2.5”HDD or SSD (Option) x 1

I/O Ports

Serial	Serial Port x 6, DB-9 Pin9 with RI/5V/12V selectable by BIOS. COM 1: RS-232, RJ-50 with convert to DB-9 cable COM 2: RS-232, RJ-50 with convert to DB-9 cable COM 3: RS-232/422/485 selectable by BIOS, RJ-50 with convert to DB-9 cable COM 4: RS-232, RJ-50 with convert to DB-9 cable COM 5: RS-232, Internal reserved for 2x20 VFD Customer Display COM 6: RS-232, Internal reserved
USB	USB 3.0 x 2 USB 2.0 x 2
Cash Drawer	RJ12 x 1, support 12V / 24V DC cash drawer
Audio	2W Speaker x 2
DC-in	4-pins 24V DC input with lock connector x 1
LAN	Gigabit Ethernet by RJ-45 x 2, support Wake on LAN
Display Port	Mini DP x 1 Optional: Cable @ DP-to-VGA, DP-to-DVI, DP-to-HDMI
DC-out	Option：12V DC output connector x 1
COM 3	Standard：DB9 for RS-232 / 422 / 485 x 1
Remote Power Switch	Rock Power Switch x 1
COM 4	Standard：DB9 for RS-232 x 1
POWER USB	Option：12V DC / 1.5A input from adapter x 1 Option：Direct pass the 24VDC / 2.5A input from adapter x 1

Physical Dimensions

Dimension ( WxDxH )	36.5 x 26 x 35 cm (14.4 x 10.2 x 13.8 inch)
Net Weight / Gross Weight	6 kg ,13.3 lb / 8.6 kg, 18.9 lb

Others

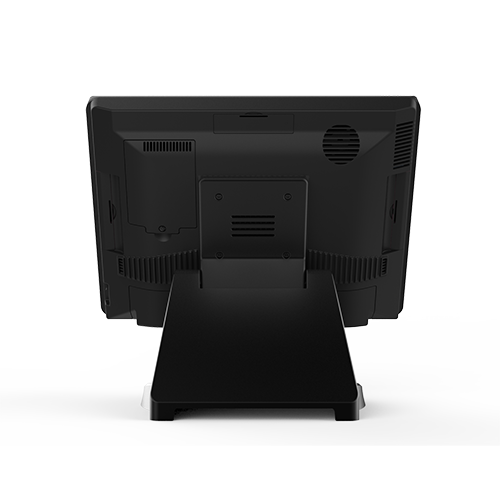

Mounting mechanism	Support VESA Mount
Communication	Wireless LAN module, half size mini PCIe type (Optional)
Expansion Slot	Full size Mini PCIe x 1 Half size Mini PCIe x 1
Color	Black
Material	Aluminum
Certifications	CE / FCC / WEEE / RoHS
Ingress Protection	IP65 @ front panel

Environmental Conditions

Storage Temperature	-40~ 85°C (-40~185°F)
Humidity	95% @ 40°C (non-condensing)
Operating Temperature	-With extended temperature SSD/mSATA/RAM/Adapter : -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s air flow -With standard system configurations: 0 ~ 50°C (-32 ~ 122°F) with 0.7m/s air flow

Ordering Information

Optional Accessories Ordering Information

Part No.	Description
XPOS75PE-5B-6700TE	Skylake POS Terminal w/ 15" TFT LCD Intel® Core™ i7-6700TE 3.4GHz, Black
XPOS75PE-5B-6500TE	Skylake POS Terminal w/ 15" TFT LCD Intel® Core™ i5-6500TE 2.7GHz, Black
XPOS75PE-5B-3900TE	Skylake POS Terminal w/ 15" TFT LCD Intel® Celeron G3900TE 2.3GHz, Black
XPOS75PE-5B-6100TE	Skylake POS Terminal w/ 15" TFT LCD Intel® Core™ i3-6100TE 2.7GHz, Black
