IoT BoxPC BPC90

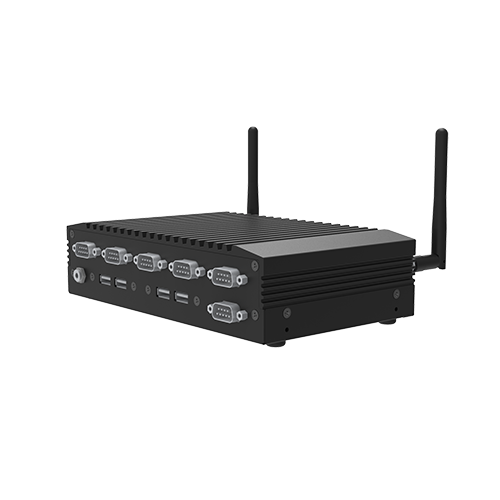

Embedded IoT Box PC Fanless Embedded IoT Box PC, robust housing with Intel® SkyLake and Kaby Lake CPU, comes with 8GB of DDR3L memory and optional mSATA or 2.5” SATA storage support. Versatile I/O connectivity is provided by 5x RS232, 1x RS232/RS485, 2x USB 3.0, 4x USB 2.0, 2x GbE, while expansion is supplied by mini-PCIe slots for optional variety of Wi-Fi / 3G connections. Supported operating systems include Windows 7 (Skylake only) / Windows 10 / Linux kernel 4.0+ & associated distributions.
Key Features
| Main Board Name | B90 |
| CPU | Intel® Core™ Processors Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)(formerly Kaby Lake) |
| System Memory | SO-DIMM DDR3L-1600 Up to 8GB |
| Graphic | SkyLake: Intel® HD Graphics 520 Kaby Lake: Intel® HD Graphics 620 / Intel® HD Graphics 610 |
| BIOS | AMI UEFI BIOS |
| O.S. Support | Windows 7 (Skylake only) / Windows 10 / Linux kernel 4.0+ & associated distributions |
| Cooling Solution | Fanless |
| HDD or SSD | Optional 2.5" HDD or 2.5" SSD x 1 (SATA 3.0 by cable) |
| mSATA SSD | Optional mSATA SSD |

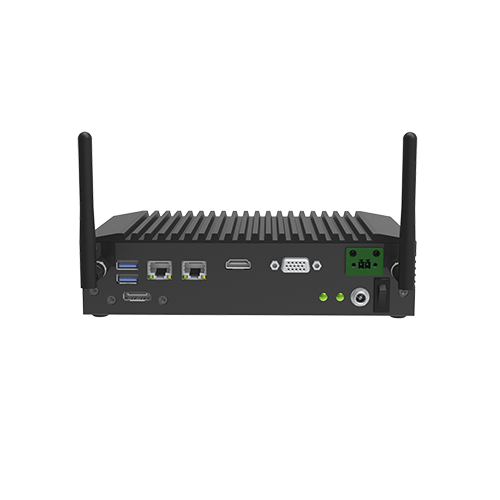

| USB | Front: USB 2.0 x 4 Rear: USB 3.0 x 2 |
| Audio | Front: Mic in & Line Out |
| DC-in | Rear: Locking Jack 9~28V DC input |
| PCI/e Mini-Card slot, or Optional M.2 card | Mini PCI Express x 2 |
| LAN | Rear: Intel Gigabit Ethernet by RJ-45 x 2 |
| Display Port | Rear: VGA x 1, DP x 1 (Optional) |
| LED | Rear: Power Status x 1, Storage x 1 |

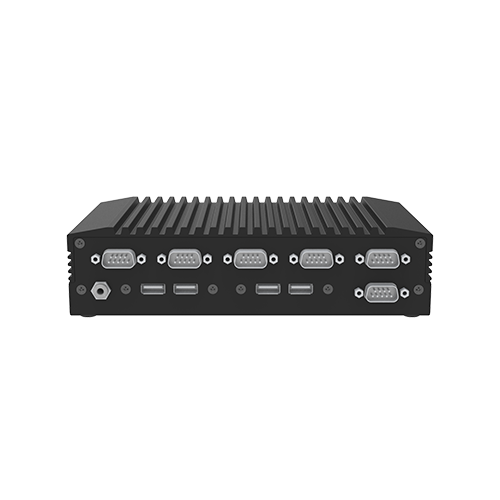

| COM1 | Front: DB9 for RS232 |
| COM2 | Front: DB9 for RS485 |
| COM 3 | Front: DB9 for RS232 |
| Remote Power Switch | Rear: Remote Power On/Off Switch x 1 |
| COM 4 | Front: DB9 for RS232 |
| COM 5 | Front: DB9 for RS232 |
| COM 6 | Front: DB9 for RS232 (Tx/Rx only) |
| Power Switch | Power On/Off Switch x 1 |
| Dimension ( WxDxH ) | 20 x 5 x 12 cm (7.9 x 2 x 4.7 inch) |
| Weight | 1.2kg |
| Communication | Wireless LAN Module, mini PCIe Type (Optional) |
| Expansion Slot | mSATA socket x 1 Mini-PCIe socket x 1 for optional Wi-Fi or 3G / 4G LTE |
| Color | Black |
| Material | Top Cover: Aluminum Top & Bottom Case: SECC |
| Certifications | CE / FCC |
| Storage Temperature | -40 ~ 85°C |
| Humidity | 10% ~ 90%RH (non-condensing) |
| Operating Temperature | -20 ~ 60°C (-4 ~ 140°F) with 0.7m/s air flow (W/extended temperature peripherals) |
| Shock Protection | With mSATA/SSD: 30G, IEC 60068-2-27, half sine, 11ms |
| Vibration Protection | With mSATA/SSD: 1 Grms, IEC 60068-2-64, Random, 10~500 Hz |
| Mounting Mechanism | Wall mount kit |
| Power Adapter | 19VDC / 65Watt, operating temp. 0~40°C |
